Discount Solution for Pure Electric Agricultural Fog Cannon Plant Protection Vehicle Factories, Products

Product Description

Pure electric, low noise and no pollution.

Can be used as a mobile power source in farmland.

Superior driving performance, operable by a single person.

Lightweight & all-terrain design for farmland, greenhouse pathways, and hilly terrain.

Good plant protection effect and wide application range.

Pure Electric Agricultural Fog Cannon Vehicle

Using renewable energy to generate electricity further contributes to savings and enhances sustainability. To sum up, the pure electric agricultural fog cannon plant protection vehicle is a sustainable and efficient solution to meet farmers’ plant protection needs. Its zero-emission electric powertrain, precise spraying capabilities and cost-effective operation make it ideal for environmentally conscious farmers who want to effectively protect crops while minimizing impact on ecosystems.

As an electric vehicle, it achieves zero emissions, reduces air pollution and minimizes environmental impact. This is particularly important in agricultural areas, where conventional diesel or gasoline-powered vehicles contribute to air pollution and soil quality degradation. The vehicle’s fog cannon feature enables farmers to spray specialized pesticides or insecticides in the form of a fine mist or mist. This ensures complete coverage of crops, reaching even the most hard-to-reach areas. The ability to precisely spray not only increases the effectiveness of pest control, but also minimizes the use of chemicals, reducing the risk of overspray and potential harm to humans, animals and surrounding ecosystems.

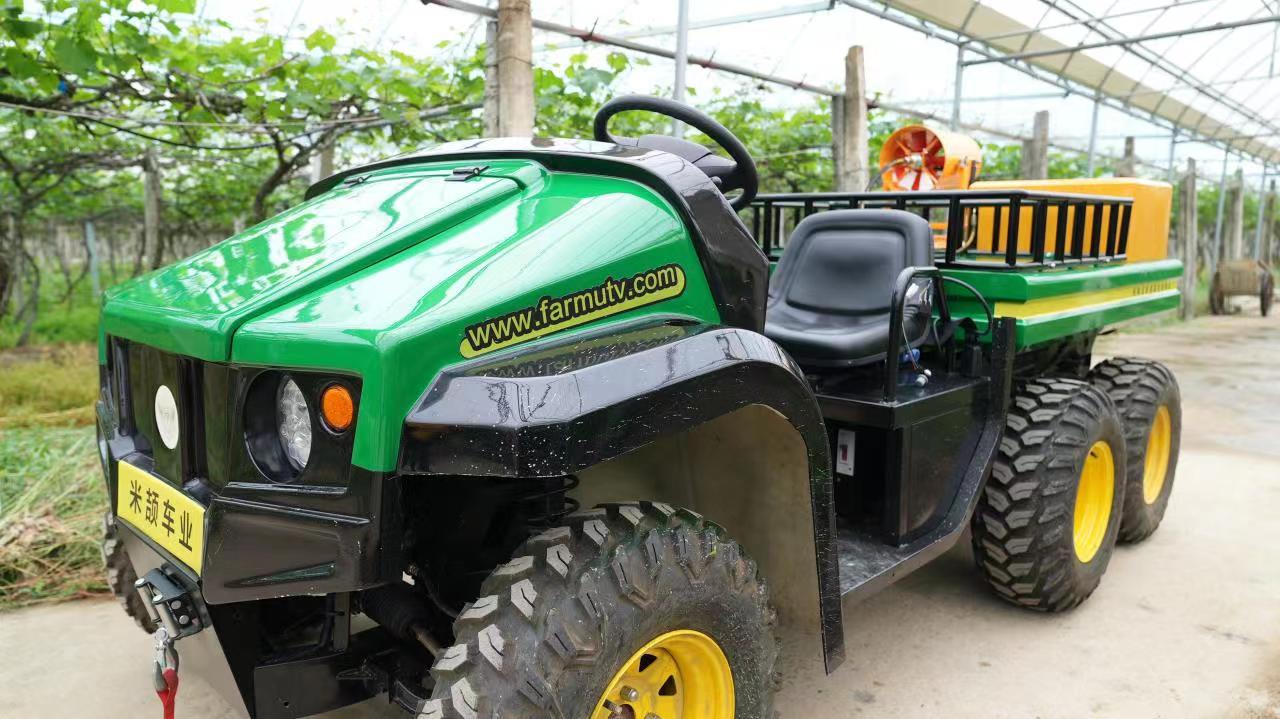

Plant Protection Vehicle Feature
Plant Protection Vehicle Side View
Plant Protection Vehicle Operation
All Terrain Application
Vineyard
Vineyard Application 1
Vineyard Application 2
Vineyard Application 3
Vineyard Application Detail
Construction Site Racecourse
Construction Site & Racecourse Application 1
Construction Site & Racecourse Application 2
Golf Course
Golf Course Application 1
Golf Course Application 2
Fire Engine
Fire Engine Application 1
Fire Engine Application 2
/Wading /Snow /Mountain
Technical Specifications
Basic
Vehicle Type Electric 6x4 Utility Vehicle
Battery
Standard Type Lead-Acid
Total Voltage(6 pcs) 72V
Capacity(Each) 180Ah
Charging Time 10hours
Motors & Controllers
Motors Type 2 Sets x 5 kw AC Motors
Controllers Type Curtis1234E
Travel Speed
Forward 25 km/h(15mph)
Steering and Brakes
Brakes Type Hydraulic Disc Front,Hydraulic Drum Rear
Steering Type Rack and Pinion
Suspension-Front Independent
Vehicle Dimension
Overall L323cmxW158cm xH138 cm
Wheelbase(Front-Rear) 309 cm
Vehicle Weight with Batteries 1070kg
Wheel Track Front 120 cm
Wheel Track Rear 130cm
Cargo Box Overall Dimension,Internal
Power Lift Electrical
Capacity
Seating 2 Person
Payload (Total) 1000 kg
Cargo Box Volume 0.76 CBM
Tyres
Front 2-25x8R12
Rear 4-25X10R12
Optional
Cabin With windshield and back mirrors
Radio&Speakers For Entertainment
Tow Ball Rear
Winch Ahead
Tyres Customizable
More Video
Video Preview 1
Video Preview 2

The pure electric agricultural fog cannon plant protection vehicle is a revolutionary solution to the challenges faced by farmers in protecting crops from pests and diseases. The vehicle combines the power of pure electric technology with the functionality of a fog cannon to provide a sustainable and highly effective method of plant protection. One of the main advantages of pure electric agricultural fog cannon plant protection vehicles is its environmental protection.

In addition to environmental protection and precise spraying capabilities, pure electric agricultural fog cannon plant protection vehicles have other advantages. Its electric powertrain enables quieter operation, reducing noise pollution and potential disturbance to nearby residents or livestock. The vehicle's mobility enables farmers to cover larger areas in less time, thereby increasing overall efficiency and productivity. Additionally, using such a vehicle can save costs in the long run. Although the upfront investment may be higher compared to conventional vehicles, the lower maintenance and operating costs of electric vehicles make them more cost-effective in the long run.

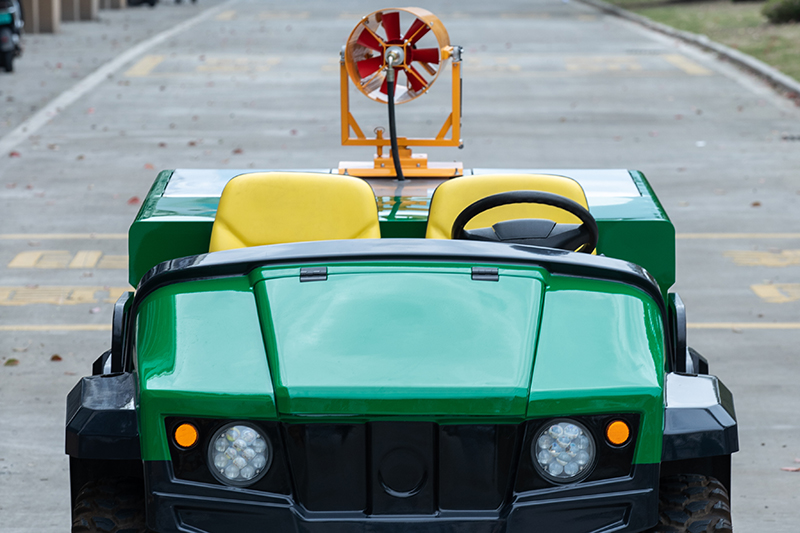

Field Operation Display
Frequently Asked Questions (FAQ)

What are the primary environmental benefits of this fog cannon vehicle?

As a pure electric vehicle, it delivers zero emissions, significantly reducing air pollution and avoiding soil degradation caused by traditional gasoline or diesel-powered machinery.

How does the fog cannon feature enhance plant protection effectiveness?

The fog cannon sprays specialized pesticides or insecticides as a fine mist, ensuring uniform and complete coverage of crops—even in hard-to-reach areas—while reducing chemical waste and overspray risks.

What environments and terrains is this vehicle suitable for?

Thanks to its lightweight and all-terrain 6x4 utility design, it operates effortlessly across farmlands, greenhouse pathways, vineyards, construction sites, racecourses, golf courses, hilly slopes, wading waters, snow, and mountain paths.

What are the key battery and motor specifications?

The vehicle is equipped with a 72V 180Ah Lead-Acid battery set (6 pcs) with a 10-hour charging time, powered by dual 5 kW AC motors controlled by a Curtis 1234E system.

What is the payload capacity and maximum travel speed?

The utility vehicle supports a maximum total payload of 1000 kg with a cargo box volume of 0.76 CBM, reaching a forward travel speed of up to 25 km/h (15 mph).

Is the vehicle easy to operate by one person?

Yes, its driving operation performance is engineered for simplicity and efficiency, allowing complete operation and management by a single person.
